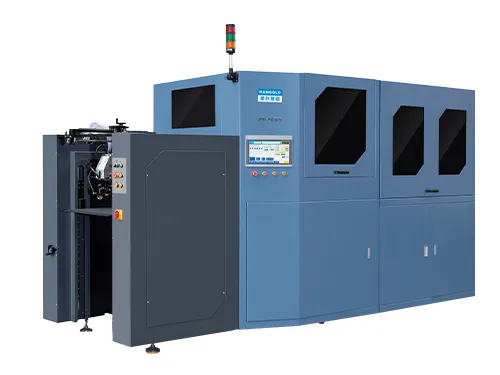

FC-520/800 Flatbed Die-Cutting Machine
Flatbed die cutter with stripper for cutting, creasing and waste stripping of cards, tags, folding cartons and other paperboard productsFlatbed die-cutting machine is designed for die-cutting of hang tags and folding cartons, integrating creasing, die-cutting, waste stripping, hole clearing, and counting into a single continuous process.
An electronic gauge combined with a servo feeding system ensures stable sheet transport, while front, rear, left, and right die-cutting positions can be adjusted through a touch screen interface, allowing efficient setup and short changeover time. Delivery can be configured with scale stacking delivery or modular belt delivery, reducing manual handling requirements and improving overall operational efficiency.
Features
- Integrated die-cutting and waste stripping with automatic removal of hole waste and edge waste
- Hole waste removal rate of 100 percent for holes of 3 mm
- Die cut products do not require stitching
- Automatic tracking of digital printing misregistration
- Use of plywood cutting dies with a maximum paper weight of 1100 gsm
- Maximum speed up to 4000 sheets per hour
- Belt fast delivery system allows operation by one person

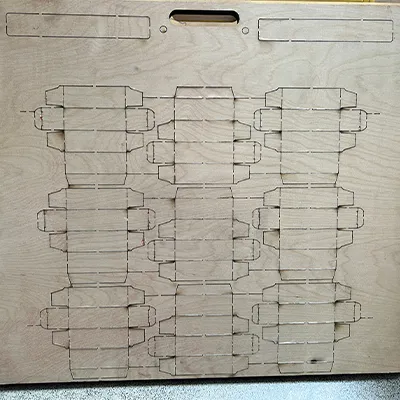

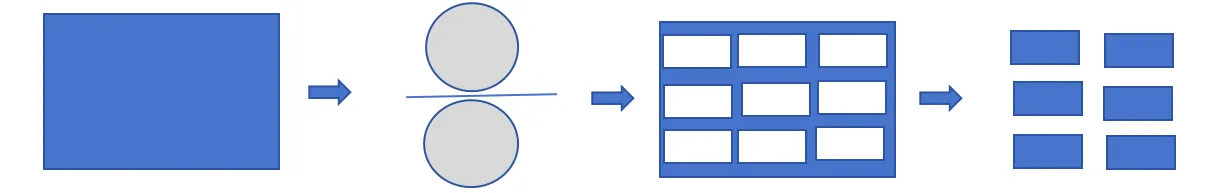

Applications

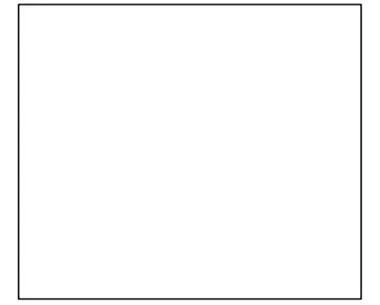

1. Before die-cutting

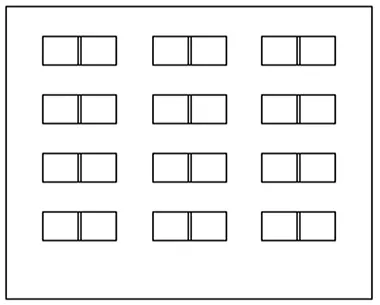

2. Die-cutting

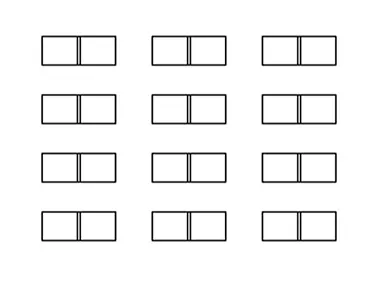

3. After die-cutting
- Main Components
- Optional Delivery Methods
Feeding section
Paper guiding section
Die-cutting section
Waste stripping section

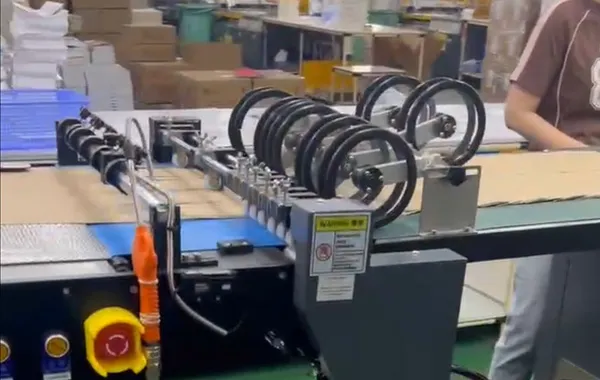

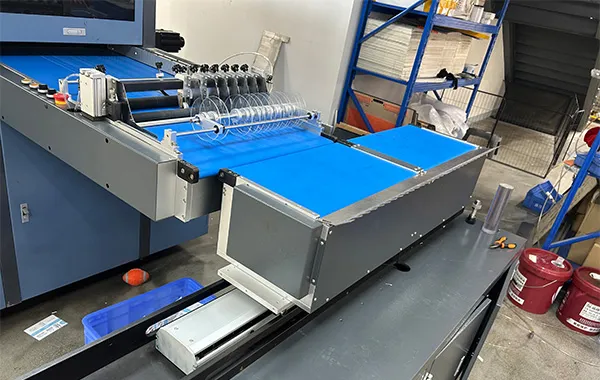

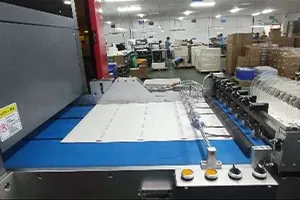

Modular belt delivery section
Modular belt delivery

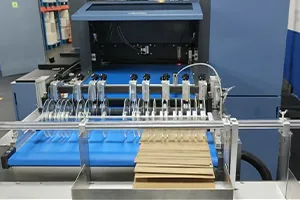

Shingled stacking delivery
| Model | ||
|---|---|---|
| Maximum sheet size | 520 × 620mm | 600 × 800mm |
| Minimum sheet size | 300 × 300mm | 300 × 300mm |
| Minimum cutting unit size | 32 × 35mm | 32 × 35mm |
| Paper thickness | 0.2 to 1.2 mm | 0.2 to 1.2 mm |
| Maximum speed | 4000 sheets per hour | 4000 sheets per hour |
| Die-cutting accuracy | ±0.2mm | ±0.2mm |
| Minimum gripper margin | 12mm | 12mm |
| Minimum stripping bleed | 4mm | 4mm |

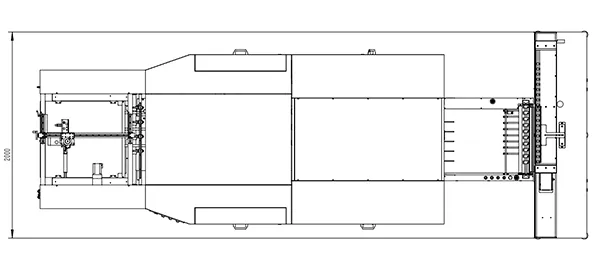

| Dimensions | 6300 × 1720 × 2100mm | 7200 × 2000 × 2100mm |
| Weight | 5600kg | 6500kg |
| Power supply | Three phase 380 V | Three phase 380 V |
| Installed power | 20kW | 22kW |
