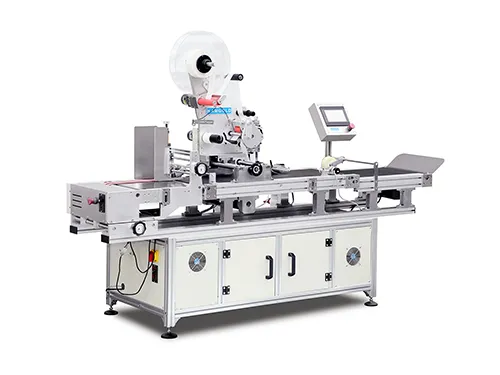

DTJ-320 RFID Labeling Machine
Automatic tag application system with single or dual labeling heads for RFID labels and tags, with speed up to 500 pc/minDTJ-320 automatic RFID labeling machine is available in single head and dual head configurations.
The equipment is designed for labeling individual hang tags and is suitable for applying standard labels as well as RFID labels. It can also be used to apply one or multiple labels onto a single hang tag. The labeling machine provides high labeling accuracy and high operating speed.
Finished Product Examples
Main Components

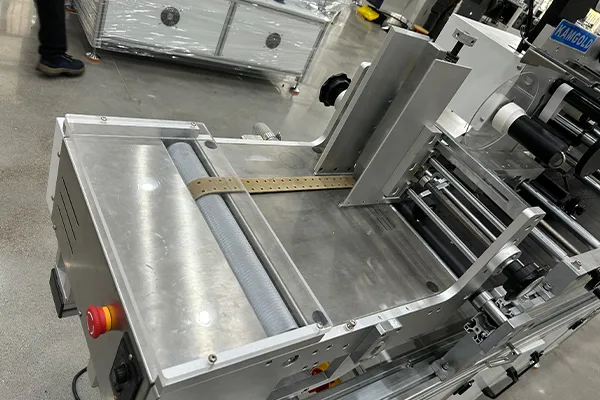

Belt feeding system

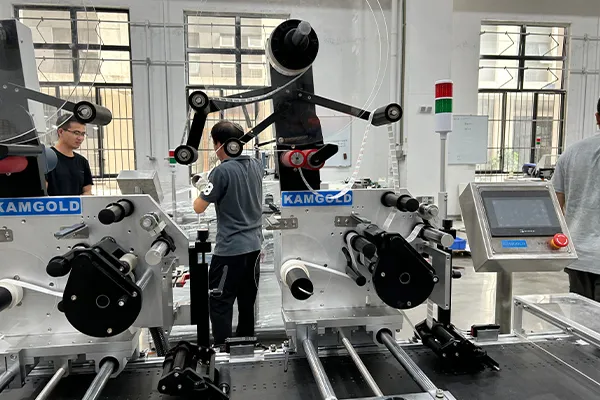

Labeling head
Technical Specifications
| Model | ||
|---|---|---|
| Speed | 200 to 500 pieces per minute | |
| Hang tag size | 25 × 35 to 300 × 400 mm | |
| Label size | Width 20 to 100 mm, Length 10 to 80 mm | |
| Product thickness | 0.3 to 2.5 mm | |
| Hang tag placement height | 300 mm | |
| Dimensions | 2500 × 800 × 1700 mm | 2900 × 800 × 1700 mm |
| Weight | 450 kg | 600 kg |
| Power supply | Single phase 220 V | Single phase 220 V |
| Installed power | 3.5 kW | 4.5 kW |
| Labeling accuracy | ±0.5 mm | |
