FG-420 Rotary Die-Cutting Machine
Rotary die cutter with full-cut and kiss-cut capability for cutting, creasing and waste removal of labels, tags, cards and folding cartonsThe rotary die-cutting machine with waste stripping is designed for hang tags and folding cartons. Creasing, die-cutting, waste stripping, and hole clearing are completed in a single process.
Full cut and half cut operations can be achieved through adjustment of flexible dies. Changeover time is short, operation is straightforward, and die cut products do not require stitching. The equipment is suitable for practical post press die-cutting applications.
| Compatible dies | Optional dies |
|---|---|
| Flexible dies | Engraved dies |
Features
- Fast changeover between products
- Integrated die-cutting and waste stripping
- Compatibility with fast delivery systems allowing single operator collection
- Maximum speed of 4000 sheets per hour
- Die-cutting accuracy of ±0.2 mm
- Supported paper thickness up to 450 gsm or 0.48 mm with flexible dies and up to 600 gsm or 0.8 mm with engraved dies

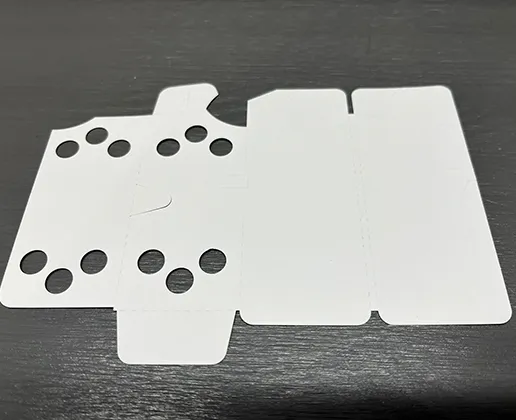

Applications

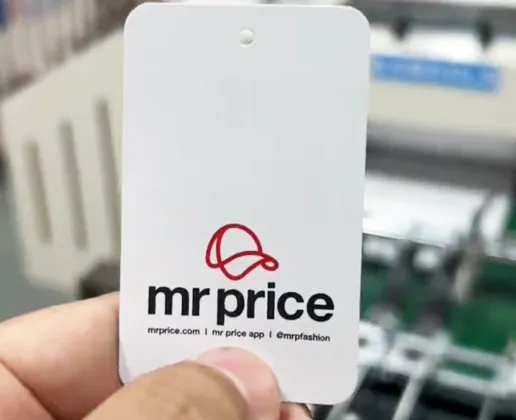

- Hang tags
- Labels
- Cards
- Playing cards
- Folding cartons
Samples
Process Flow
1.Sheet feeding
2.Die-cutting
3.Waste stripping
4.Finished products
5.Collection
- Main Components
- Optional Delivery Configurations

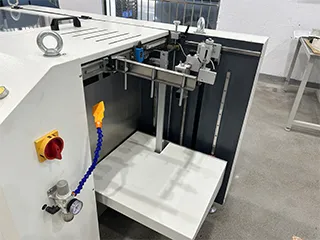

Feeding section

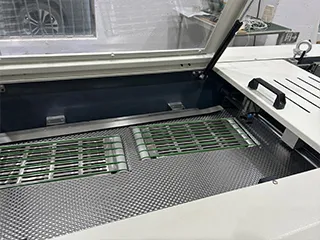

Paper guiding section

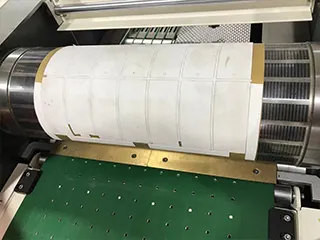

Die-cutting section

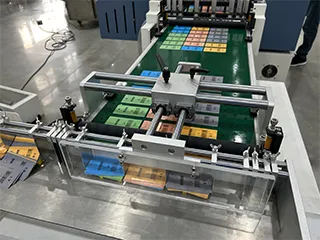

Delivery section

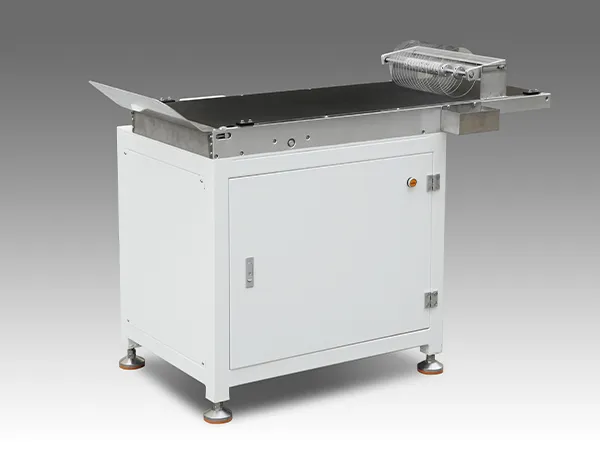

Belt shingled stacking delivery
- Requires two to three operators for collection

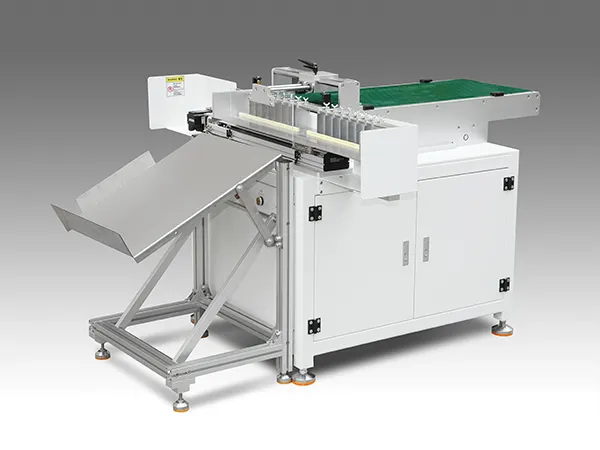

Modular delivery system
- Significantly reduces labor requirements and operator workload
- Improves overall production efficiency
- Standard configuration supports collection of seven product lanes with adjustable quantity based on production requirements
- Allows collection by one operator

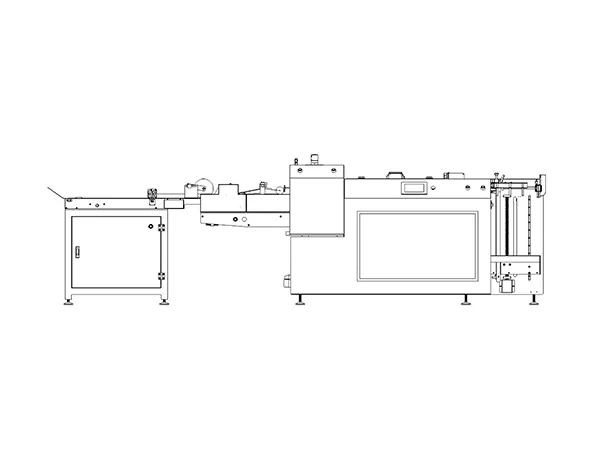

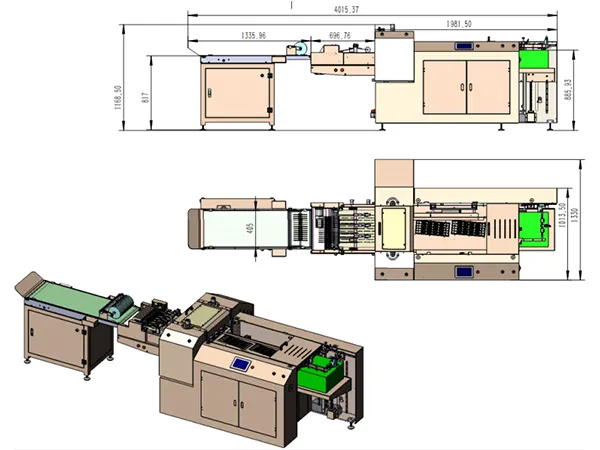

Technical Specifications
| Model | |
|---|---|
| Maximum etched die size | 400 × 520 mm |
| Minimum etched die size | 160 × 100 mm |
| Maximum sheet size | 400 × 500 mm |
| Minimum sheet size | 200 × 200 mm |
| Minimum cutting unit size | 32 × 35 mm |
| Paper thickness | 0.1 to 0.48 mm within 450 gsm |
| Maximum speed | 4000 sheets per hour |
| Minimum sheet margin | 10 to 15 mm |
| Minimum stripping bleed | 3 mm |
| Dimensions | 3900 × 1850 × 1400 mm |
| Weight | 1500 kg |
| Power supply | Three phase 380 V |
| Installed power | 8 kW |
