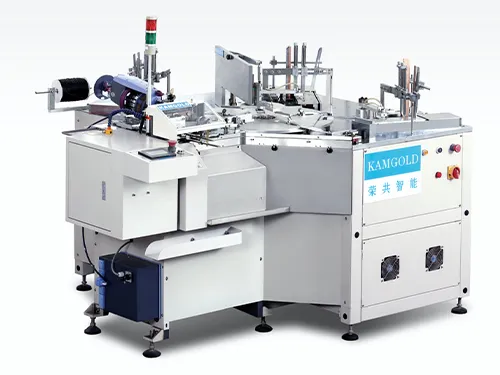

F-910 Automatic Hang Tag Stringing Machine
Automatic hang tag stringing machine for single tag and dual tag production with knotting, counting, and bundling functionsThe automatic hang tag stringing machine is designed for multi-page hang tag folding and stringing applications. Automatic tag collation, folding, stringing, knotting, and counting are completed in a single process.
The machine is capable of stringing three hang tags of different sizes simultaneously and supports single tag stringing.
Applications
- Apparel and accessory hang tags
- Airline baggage tags
- Fragrance tags
- Daily consumer goods tags including snacks, edible oil, and alcoholic products
- Product instruction cards

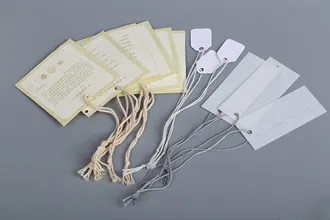

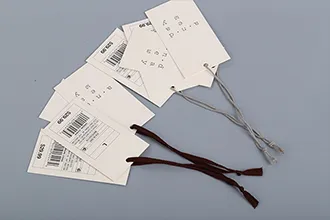

Samples
Technical Specifications
| Model | |
|---|---|
| Speed | 2000 to 5000 pieces per hour |
| Outer tag size | 22 × 100 to 80 × 300 mm |
| Inner tag size | 22 × 50 to 95 × 150 mm |
| String diameter | 0.3 to 2.1 mm for cotton and nylon string 0.3 to 1.5 mm for waxed string and hemp string 1 to 6 mm for ribbon |
| Stringing length | 90 to 180 mm Ribbon length ≥115 mm |
| String tail length | 15 to 20 mm |
| Hang tag thickness | 200 to 1000 gsm |
| Hang tag hole diameter | ≥3 mm |

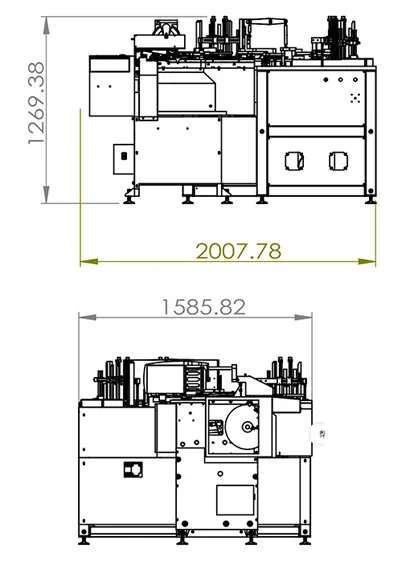

| Dimensions | 2000 × 1600 × 1600 mm |
| Weight | 2200 kg |
| Power supply | Three phase 380 V |
| Installed power | 5250 W |
