FG-620 Rotary Die-Cutting Machine
Rotary die cutter with full-cut and kiss-cut capability for cutting, creasing and waste removal of labels, tags, cards and folding cartonsAutomatic rotary die-cutting machine with waste stripping is designed for hang tags and folding carton products. Creasing, die-cutting, waste stripping, and hole clearing are completed in a single process.
Full cut and half cut operations can be achieved through adjustment of flexible dies. Changeover time is short, operation is simple, and die-cut products do not require stitching. The machine is suitable for practical post-press die-cutting applications.
Features
- Fast product changeover
- Integrated die-cutting and waste stripping
- Compatibility with fast collection systems allowing operation by one person
- High speed up to 4000 sheets per hour
- High accuracy with die-cutting precision of ±0.2 mm
- Supported paper thickness up to 400 gsm or 0.5 mm with flexible dies and up to 600 gsm or 0.8 mm with engraved dies
Applications
- Hang tags
- Labels
- Cards
- Playing cards
- Folding cartons
Samples
Process Flow
1.Sheet feeding
2.Die-cutting
3.Waste stripping
4.Finished products
Main Components

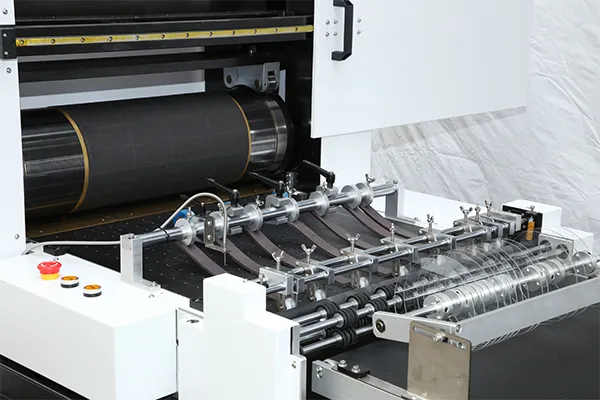

Die-cutting and waste stripping unit

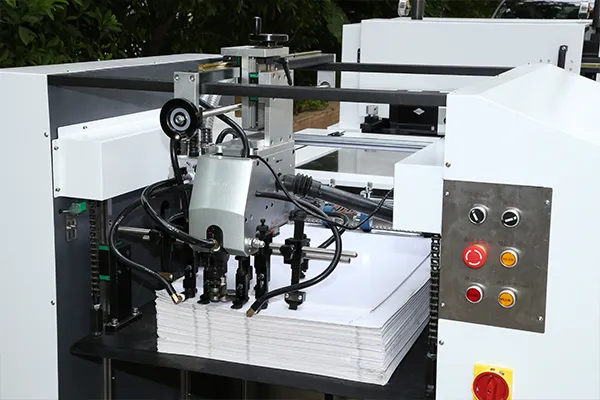

Feeding section
Technical Specifications
| Model | |
|---|---|
| Maximum etched die size | 620 × 650 mm |
| Minimum etched die size | 160 × 160 mm |
| Maximum sheet size | 620 × 650 mm |
| Minimum sheet size | 200 × 200 mm |
| Minimum cutting unit size | 35 × 35 mm |
| Paper thickness | 0.1 to 0.48 mm |
| Speed | 4000 sheets per hour |
| Die-cutting accuracy | ±0.2 mm |
| Minimum sheet margin | 10-15 mm |
| Minimum stripping bleed | 4 mm |

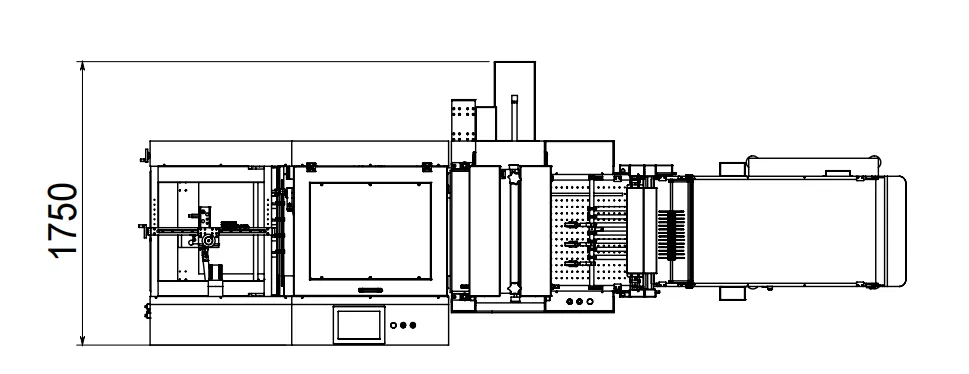

| Dimensions | 4700 × 1750 × 1560 mm |
| Weight | 2500 kg |
| Power supply | Three-phase 380 V |
| Installed power | 10 kW |
