GYJ-620 RFID Labeling Machine
Automatic tag application system with four or six labeling heads for RFID labels and tags, with speed up to 1440 pc/minGYJ-620 automatic multi head RFID labeling machine is designed for RFID inlay hang tags and replaces manual labeling operations.
The number of labeling heads can be increased or reduced according to production requirements. The machine can be configured with a front suction feeder or a rear feeder. The equipment features high operating speed, accurate positioning, simple operation, and high efficiency. One RFID labeling machine can replace multiple manual labeling stations in hang tag production.
Features
- Reliable RFID labeling accuracy with ±0.5 mm precision
- Simple and easy to learn operating system
Applications
RFID hang tags, Adhesive labels
Applicable Substrates
RFID inlay, Standard adhesive materials
Main Components

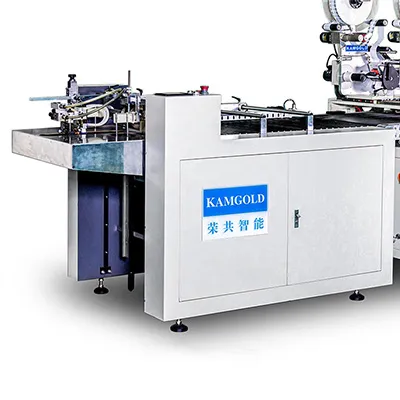

Paper feeder

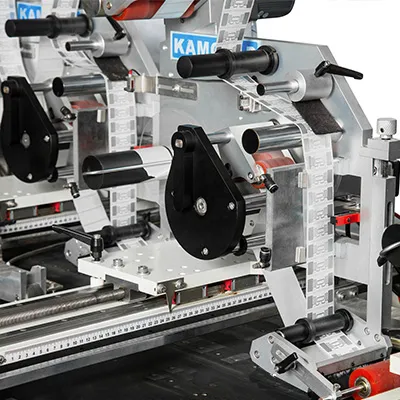

Labeling head

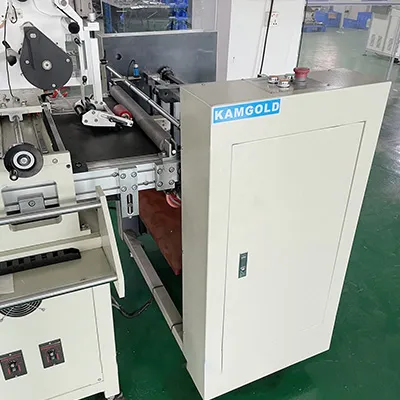

Receiving table
Technical Specifications
| Model | ||
|---|---|---|
| Labeling speed | 480 to 960 pieces per minute | 720 to 1440 pieces per minute |
| Belt speed | 20 to 40 m per minute | |
| Label size | Width 20 to 100 mm, Length 10 to 80 mm | |
| Product size | Width 100 to 580 mm, Length 120 to 580 mm | |
| Paper thickness | 0.2 to 1.2 mm | |
| Label positioning accuracy | ±0.5 mm | |
| Dimensions | 6300 × 1500 × 1800 mm | 6900 × 1500 × 1800 mm |
| Weight | 3000 kg | 3200 kg |
| Power supply | Three phase 380 V 50 Hz | Three phase 380 V 50 Hz |
| Installed power | 15 kW | 17 kW |

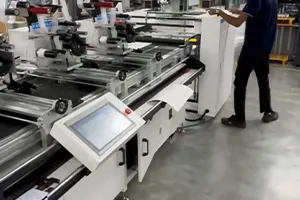

Sri Lanka Printing Factory

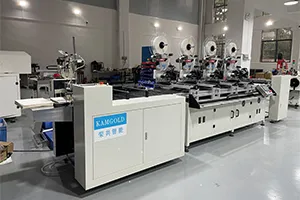

Guangzhou Nansha Packaging & Printing Enterprise
