KV-230 Automatic Hang Tag Eyeleting Machine
Hang tag eyelet attaching machine for automated hole punching, metal eyelet insertion and tag counting in a single passAutomatic hang tag eyeleting machine is designed for various types of hang tag eyelet. Hole punching, eyelet setting, material collection, and counting are completed in a single process.
The machine adopts an electrical control system consisting of a frequency converter, PLC, touch screen, and sensors. Die changeover is fast and straightforward, and operation is safe and reliable. The equipment is suitable for modern hang tag production lines.

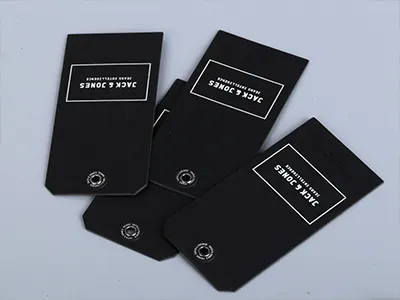

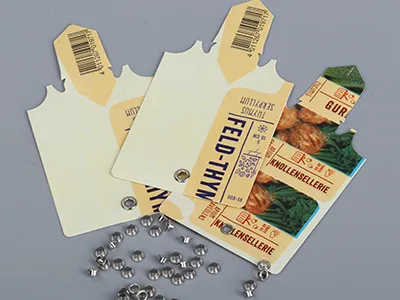

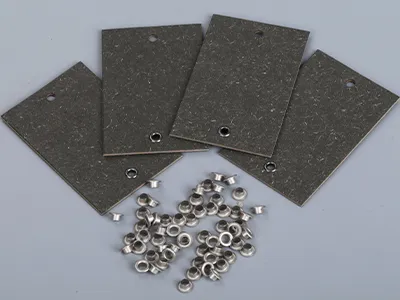

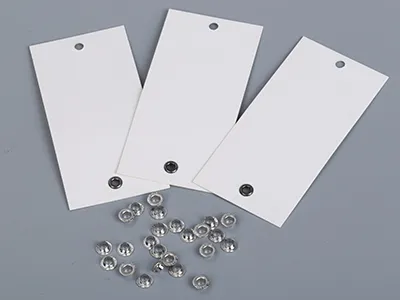

Applications
Process Flow
1. Hole punching
2. Eyelet setting
3. Stacking
Main Components

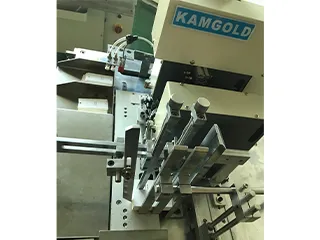

Card positioning and feeding section

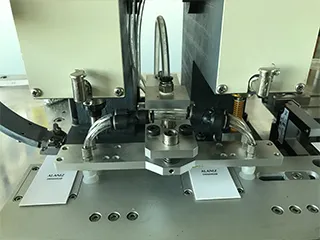

Hole punching section

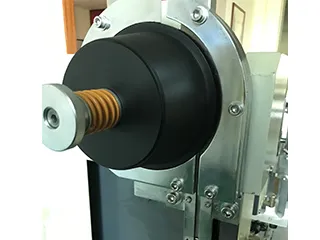

Eyelet rotary unit with discharge guide

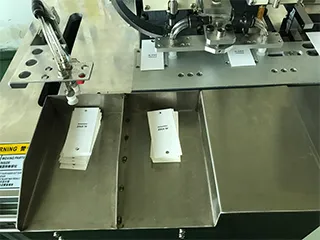

Collection box
Technical Specifications
| Model | |
|---|---|
| Speed | 2000 to 6000 pieces per hour |
| Minimum hang tag size | 22 × 50 mm |
| Maximum hang tag size | 110 × 133 mm |
| Hang tag feeding height | 250 mm |
| Hang tag thickness | 180 to 1200 gsm |
| Standard configuration | 4 mm eyelets |
| Dimensions | 1000 × 1100 × 1400 mm |
| Weight | 480 kg |
| Power supply | Three phase 380 V |
| Installed power | 750 W |
