SCG-160T/SCG-160E Automatic Hang Tag Stringing Machine
Hang tag stringer for automated hole punching, stringing, knotting and counting of individual hang tags in a single passThe automatic hang tag stringing machine is designed for various European, American, and Japanese style hang tag orders commonly used in the market. Hole punching, stringing, knotting, and counting are completed automatically in a single process.
Cold knife cutting is adopted and supports a wide range of cords, including strings of different diameters, ribbons, elastic cords, and paper cords. The equipment operates with low noise and features simple adjustment and maintenance, making it suitable for hang tag production.
Applications
- Apparel and accessory hang tags
- Airline baggage tags
- Fragrance tags
- Daily consumer goods tags including snacks, edible oil, and alcoholic products
- Product instruction cards
Samples
Process Flow
1. Hole punching
2. Threading
3. Knotting
Main Components

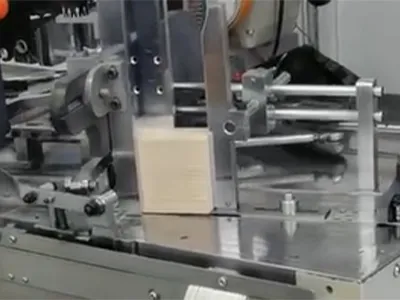

Card positioning and feeding section

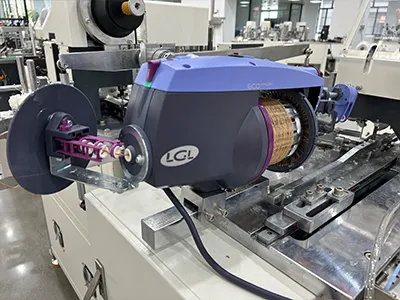

Feeding section

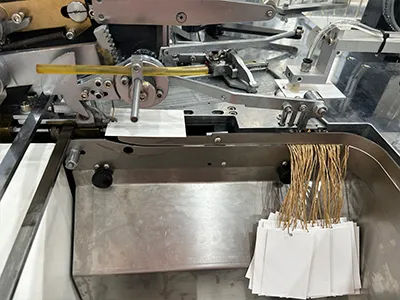

Stringing, knotting, and collection section
Technical Specifications
| Model | ||
|---|---|---|
| Speed | 1000 to 6000 pieces per hour | 1000 to 6000 pieces per hour |
| Dimensions | 20 × 40 to 95 × 150 mm | 20 × 40 to 95 × 150 mm |
| Hang tag feeding height | 210 mm | 210 mm |
| Cord diameter | Standard cords 0.3 to 2.1 mm Ribbon width ≤6 mm Elastic cord ≤1.5 mm | Standard cords 0.3 to 2.1 mm Ribbon width ≤6 mm Elastic cord ≤1.5 mm |
| Stringing length | 90 to 180 mm | 90 to 180 mm |
| Hang tag hole diameter | 3.2 mm and 4.2 mm with replaceable punching dies | 3.2 mm and 4.2 mm with replaceable punching dies |
| Cord tail length | 15 to 20 mm | 15 to 20 mm |
| Paper thickness | 180 to 700 gsm | 180 to 700 gsm |
| Dimensions | 1100 × 1100 × 1200 mm | 1100 × 1100 × 1200 mm |
| Weight | 650 kg | 650 kg |
| Power supply | Single phase 220 V | Three phase 380 V |
| Installed power | 750 W | 750 W |
