AS-570 Automatic Hang Tag Eyeleting & Stringing Machine
Hang tag machine combining automated hole punching, metal eyelet insertion, dual-tag stringing, knotting and counting in a single passAS-570 automatic hang tag eyeleting and stringing machine is designed for hang tag products requiring eyeleting and stringing, including tag stringing applications. Hole punching, eyelet insertion, tag collation, stringing, knotting, and counting are completed automatically in a single process.
The machine supports hole punching and eyelet insertion while simultaneously stringing two hang tags of different sizes, and also supports single tag stringing.
Applications
- Apparel and accessory hang tags
- Airline baggage tags
- Fragrance tags
- Daily consumer goods tags including snacks, edible oil, and alcoholic products
- Product instruction cards

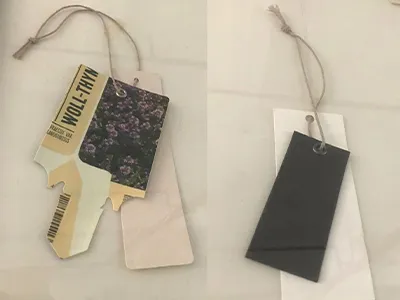

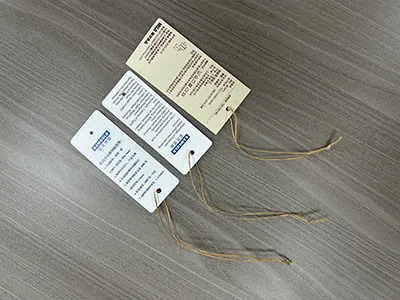

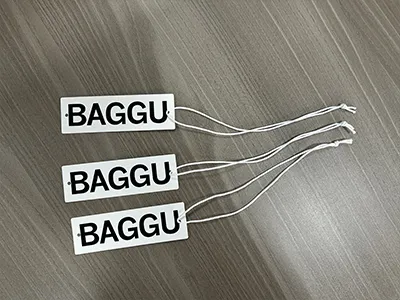

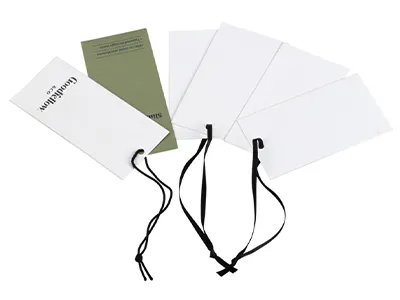

Samples
Process Flow
1. Hole punching
2. Eyelet setting
3. Stringing
4. Knotting
Main Components

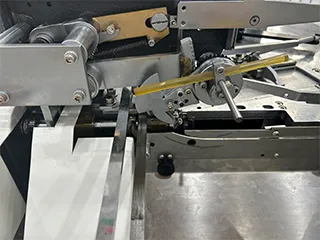

Knotting unit

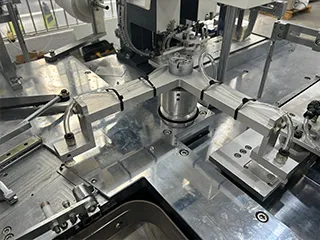

Tag collation unit

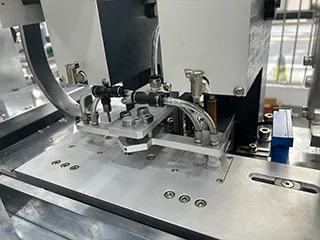

Hole punching and eyelet insertion unit

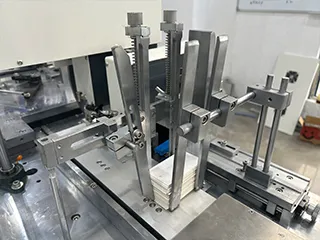

Card feeding unit

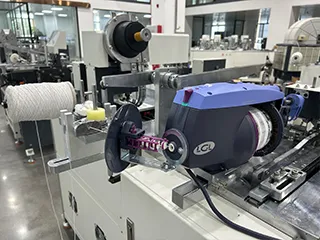

Cord feeding unit
Technical Specifications
| Model | |
|---|---|
| Speed | 2000 to 5000 pieces per hour |
| Hang tag size | 22 × 50 to 80 × 135 mm |
| Standard hole diameter | 4.2 mm with replaceable punching dies |
| Stringing length | 80 to 180 mm, Maximum extended length up to 480 mm, Ribbon length ≥115 mm |
| Cord diameter | Standard 0.3 to 2.1 mm, Ribbon width ≤6 mm, Elastic cord ≤1.5 mm |
| String tail length | 15 to 20 mm |
| Hang tag thickness | 0.3 to 1.2 mm |
| Applicable hole diameter | ≥3 mm |

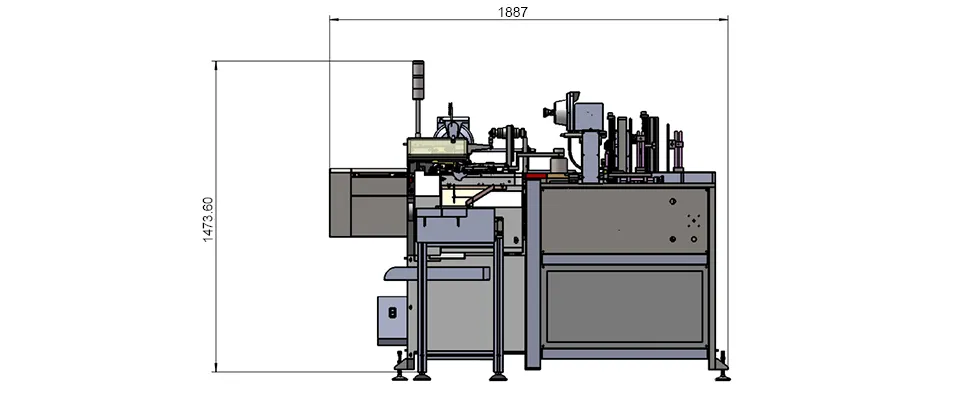

| Dimensions | 1900 × 1100 × 1300 mm |
| Weight | 1200 kg |
| Power supply | Three phase 380 V |
| Installed power | 1620 W |
