GYJ-620S RFID Labeling Machine
Automatic tag application system with four or six labeling heads for RFID labels and tags, with speed up to 2160 pc/minGYJ-620S automatic multi head labeling machine is designed for RFID inlay hang tags and replaces manual labeling operations.
The number of labeling heads can be increased or reduced according to production requirements. The machine can be configured with a printing machine type feeder. The system features high operating speed, accurate positioning, simple operation, and high efficiency. One machine can replace multiple manual labeling stations in hang tag labeling.
Features
- High RFID labeling accuracy with ±0.5 mm precision
- High speed operation with belt speed up to 60 m per minute
- Pallet infeed and pallet outfeed reduce labor requirements and handling time
- Simple and easy to learn operating system
Applications

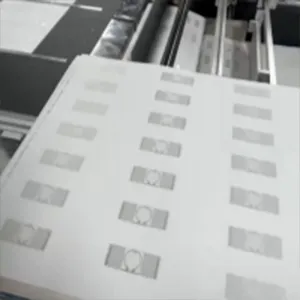

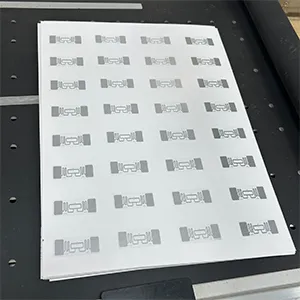

RFID hang tags
Applicable substrates

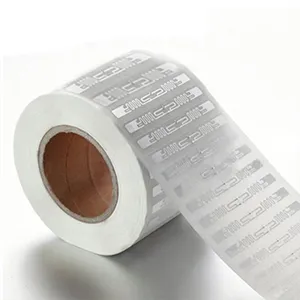

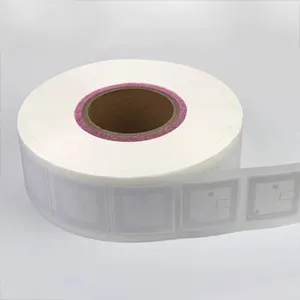

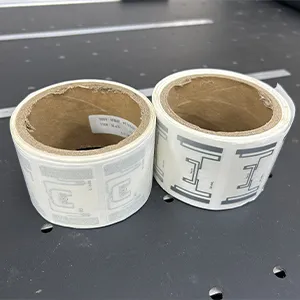

RFID inlay

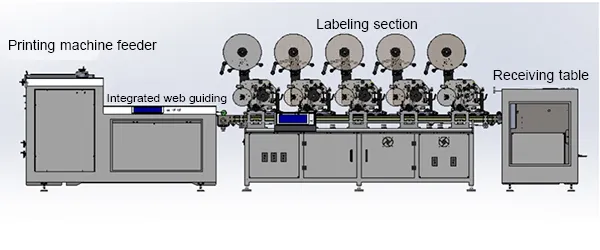

Main Components

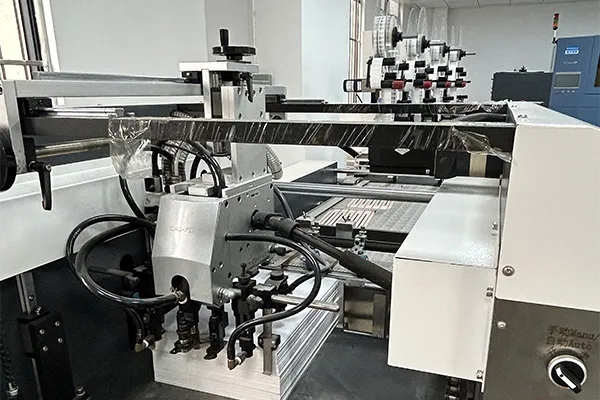

Printing machine feeder

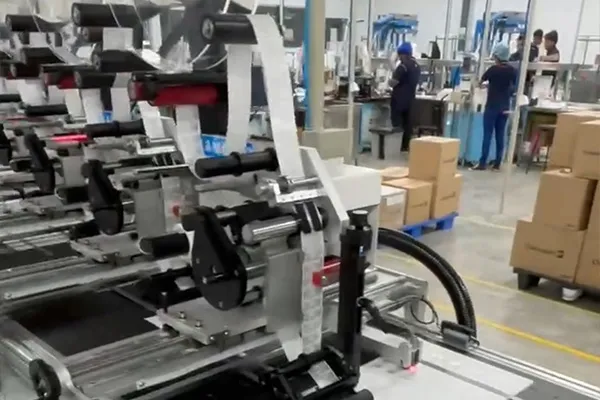

Labeling head
Technical Specifications
| Model | ||
|---|---|---|
| Labeling speed | 480 to 1440 pieces per minute | 720 to 2160 pieces per minute |
| Belt speed | 20 to 60 m per minute | |
| Label size | Width 20 to 100 mm, Length 10 to 80 mm | |
| Product size | Width 100 to 580 mm, Length 120 to 580 mm | |
| Paper thickness | 0.2 to 1.2 mm | |
| Label positioning accuracy | ±0.5 mm | |
| Dimensions | 6300 × 1500 × 1800 mm | 6900 × 1500 × 1800 mm |
| Weight | 3000 kg | 3200 kg |
| Power supply | Three phase 380 V 50 Hz | Three phase 380 V 50 Hz |
| Installed power | 15 kW | 17 kW |
